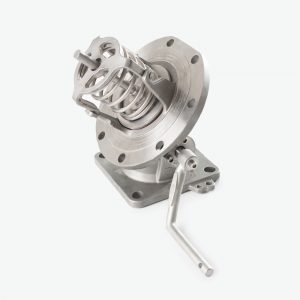

GY813 Stainless Steel Bottom Valve:
Bottom valve is installed on the bottom of the tank,the top part is tightly sealed inside of the tank,when pipeline or valve is broken suddently it will keep the tank tightly sealing to avoid the leakage to improve the safety during transportation.It is stainless steel design,long service,can be used for chemical transportation,manual control by soft shaft to operate,and add cylinder to make it level automatically to keep opening.
Technical Specifications:
Normal Diameter:3" , 4"
Material:stainless steel
Working pressure:0.6Mpa
Open way:mechanical
Working Tempreture:-50℃ ~ +150℃
