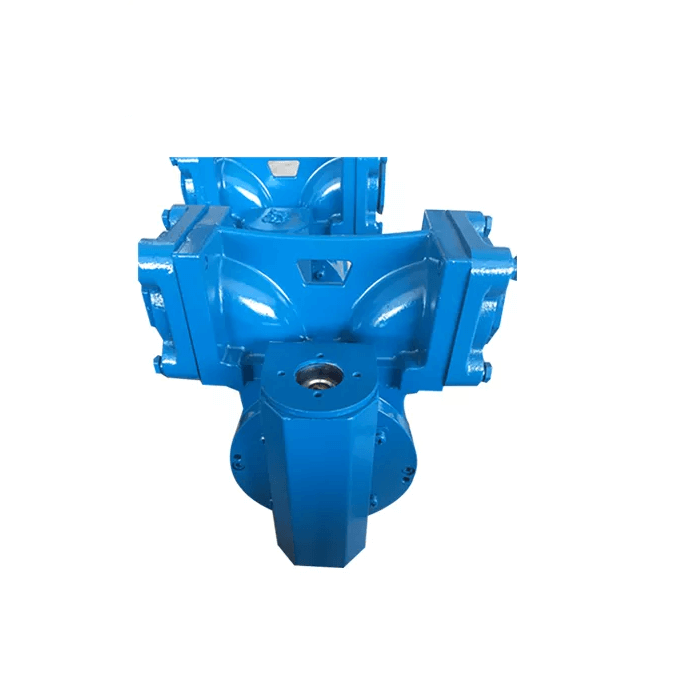

GY-145 SM Series Positive Displacement Vane Meter

SM Positive Displacement Vane Pulser Flow Meter -Deseinor

Characteristic:
Stepless adjusting mechanism allow a micro adjustment of the meter;
Special designed Manifold in line separates from measuring chamber to avoid stress coming from the installation;
Low pressure loss;
Simple construction: Rotor - blades for easy and low maintenance cost;
Wearing compensation: To maintain a good accuracy all along the years;
Meter also for viscous products: Up to 800 Cst.
Materials:
Manifold: Steel or Aluminum;
Body: Nickelic cast iron;
Covers: Steel;
Rotor: Aluminum;
Blades: Carbon;
Bearings: Stainless steel;
Seals/ gaskets: Viton, Buna'N'.
Application:
1. Oil company: Refineries, Oil depots, gas station and Tank trucks distribution;
2. Airports: Aircraft refuellers;
3. Army: Depot reception or loading trucks;
4. Administration (railway companies, public transport);
5. Ports: Boats/barges;
6. Private oil transport companies.

Model
SM50

Size
50mm/2 "

Volume Per Revolution
0.4L/0.08US Gallons

Max. Flow Rate
400L/min

Min. Flow Rate
40L/min

Accuracy
±0.2%

Repeatability
≤0.05%

Max. Operation Pressure
8Bar

Working Temperature Range
-40 °C ~+60 °C

Max. Viscosity
800cps
