GY148A
DESEINOR

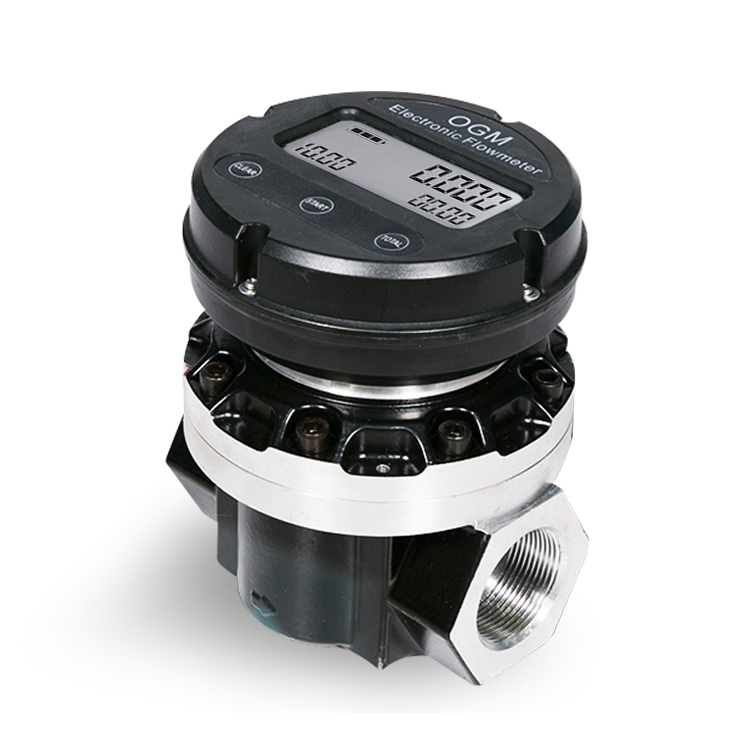

OGM 25/40/50 aluminum oval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability,applying in the petroleum,chemical,food industry,etc.
Advantage:
Compact size,easy maintenance
Easy to read and operate mechanical display
Horizontal and vertically felexibility of installation options
Low pressure drop
Application:
Widely used in industries of petroleum,chemical processing,medicine,transportation,food etc.
Technical Specification:
| Model | OGM-25 | OGM-40 | OGM-50 |
| Size | 1" | 1.5" | 2" |
| Min.Flow Rate | 20L/min | 25L/min | 30L/min |
| Max.Flow Rate | 200L/min | 250L/min | 300L/min |
| Accuracy | ±0.5% | ±0.5% | ±0.5% |
| Repeatablility | ≤0.03% | ≤0.03% | ≤0.03% |
| Max.Viscosity | 1000CPS | 1000CPS | 1000CPS |
| Max.Operating Pressure | 3.4Mpa | 1.8Mpa | 1.8Mpa |
