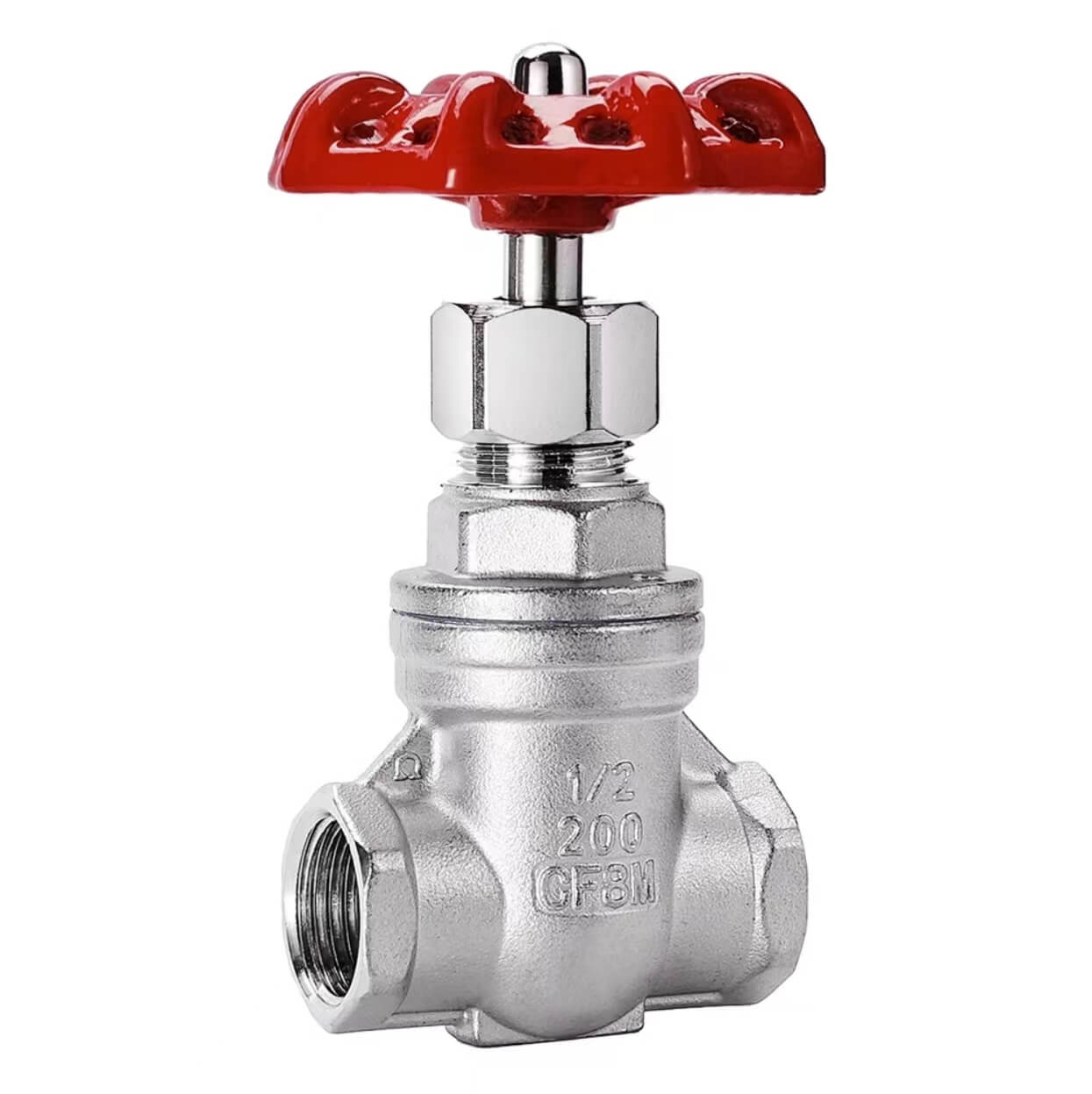

GY-GV901
DESEINOR
FEATURES
a. 2000PSI/PN16
b. Investment Casting
c. PED97/23/EC(CE0035)Approved
d. Casting Approved AD2000-WO
f. Rising stem
g. Thread: ASME B1.20.1
BS21.DIN 2999/259
BS21.DIN 2999/259
ISO228-1,JS B 0203
ISO7/1
h. Inspection Testing:API598,EN12266
DIMENSION TABLE
| ITEM/SIZE | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" |
| D | 15 | 20 | 25 | 32 | 40 | 50 |
| H | 92 | 99 | 113 | 128 | 147 | 168 |
| D1 | 70 | 70 | 80 | 80 | 100 | 100 |
| L | 55 | 60 | 66 | 76 | 86 | 96 |
MATERIALS LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | BONNET | CF8/CF8M |
| 3 | STOP RING | 304 |
| 4 | STEM | 304 |
| 5 | PACKING | PTFE |
| 6 | HAND WHEEL NUT | 304 |
| 7 | HAND WHEEL | ALUMINUM ALLOY |
| 8 | PACKING NUT | 304 |
| 9 | RING | 304 |
| 10 | LOCK NUT | 304 |
| 11 | GASKET | PTFE |
| 12 | DISC | CF8/CF8M |
