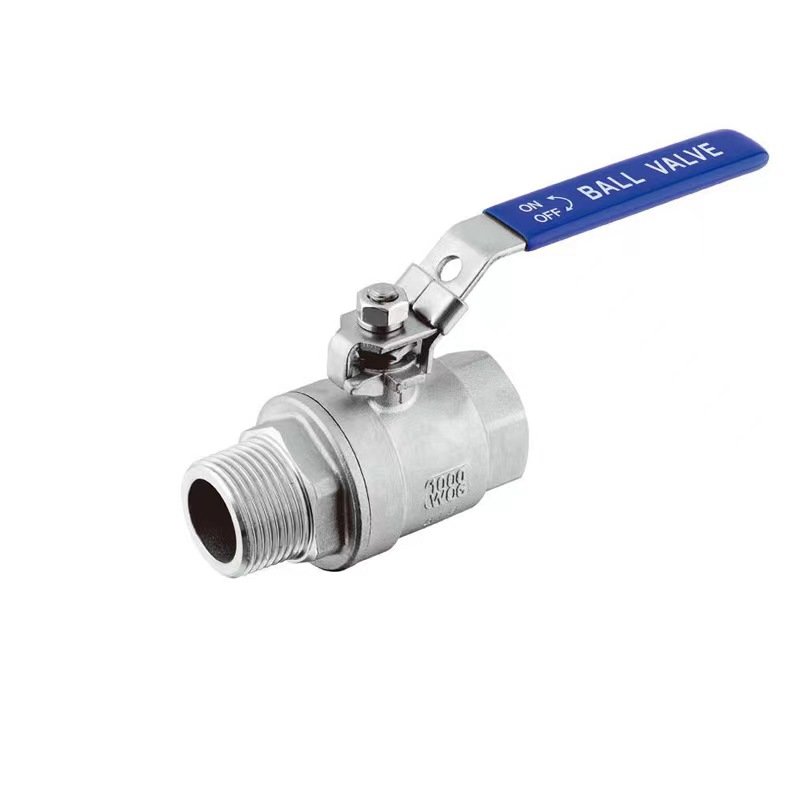

GY-QF209
DESEINOR
FEATURES
1.1000PSI/PN63
2. Full Port
3. Investment Casting
4. Blow-out proof Stem
5. Locking Device Handle(Option)
6. PED/97/23/PE(CE0035)Approved
7. Casting Approved AD2000-W0
8.Thread:ASME B1.20.1 BS21.DIN2999/259,
ISO228-1,JIS B 0203,ISO7/1
9.Inspection Testing:API598,EN12266
MATERIALS LIST
| ITEM | DESIGNATION | QTY | MATERIAL |
| 1 | HANDLE SLEEVE | 1 | PVC |
| 2 | HANDLE | 1 | 304 |
| 3 | GLAND NUT | 1 | 304 |
| 4 | STEM NUT | 1 | 304 |
| 5 | SPRING WASHER | 1 | 304 |
| 6 | STEM PACKING | 1 | PTFE |
| 7 | THRUST WASHER | 1 | PTFE |
| 8 | JOINT GASKET | 1 | PTFE |
| 9 | CAP | 1 | CF8/CF8M |
| 10 | BODY | 1 | CF8/CF8M |
| 11 | BALL SEAT | 2 | RPTFE |
| 12 | BALL | 1 | CF8/CF8M |
| 13 | STEM | 1 | 304/316 |
DIMENSIONS(mm)
| SIZE | D | d | L | H | W | S |
| 1/4" | 11.6 | 8 | 55 | 48 | 91 | 19 |
| 3/8" | 12.5 | 11.4 | 55 | 48 | 91 | 21 |
| 1/2" | 15 | 13.6 | 71.5 | 52 | 91 | 25.5 |
| 3/4" | 20 | 18.2 | 78 | 61 | 111 | 31 |
| 1" | 25 | 23 | 91 | 65 | 111 | 37.5 |
| 1-1/4" | 32 | 32 | 100 | 79 | 154 | 46.5 |
| 1-1/2" | 38 | 38 | 112 | 83 | 14 | 53.5 |
| 2" | 50 | 48 | 142 | 97 | 192 | 66 |
