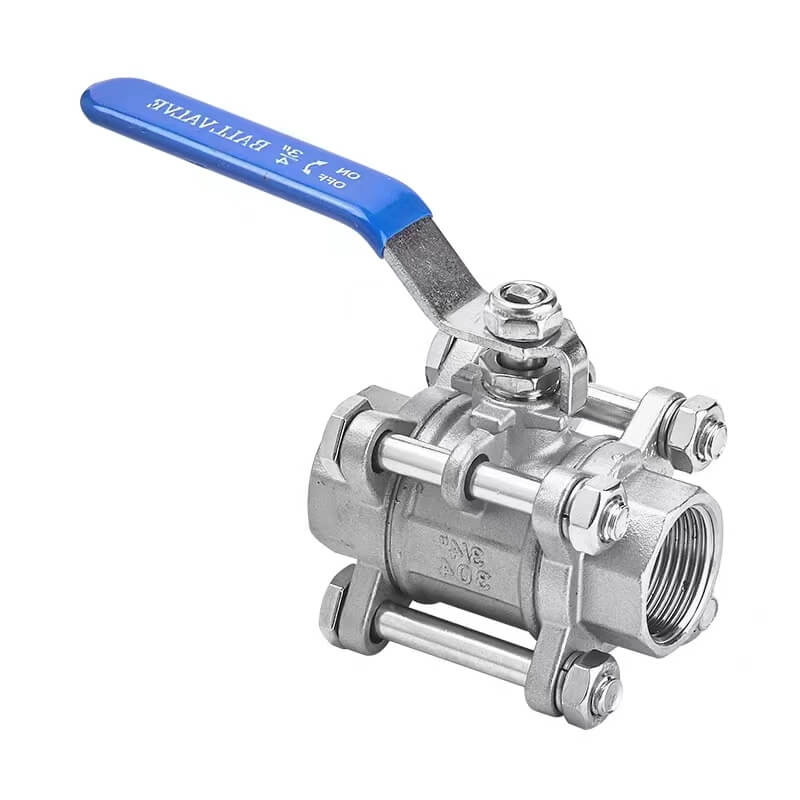

GY-QF301
DESEINOR
FEATURES
1. 1000PSI/PN63
2. Full Port
3. Investment Casting
4. Blow-out proof Stem
5. Locking Device Handle(Option)
6. PED97/23/PE(CE0035)Approved
7. Anti-Static device(option)
8. Thread ASME : B1.20.1 BS21.DIN2999/259
ISO228-1,JS B 0203,ISO7/1
9. Inspection Testing:API598,EN12266
MATERIALS LIST
| ITEM | DESIGNATION | QTY | MATERIAL |
| 1 | HANDLE SLEEVE | 1 | PVC |
| 2 | HANDLE | 1 | 304 |
| 3 | GLAND NUT | 1 | 304/316 |
| 4 | STEM NUT | 1 | 304 |
| 5 | SPRING WASHER | 4(6) | 304 |
| 6 | STEM PACKING | 1 | PTFE |
| 7 | THRUST WASHER | 1 | PTFE |
| 8 | NUT | 4(6) | 304 |
| 9 | END CAP | 2 | CF8/CF8M |
| 10 | BODY | 1 | CF8/CF8M |
| 11 | BALL SEAT | 2 | RPTFE |
| 12 | BALL | 1 | CF8/CF8M |
| 13 | STEM PACKING | 1 | 304 |
| 14 | LOCKING DEVICE | 1 | 304 |
| 15 | BOLT | 4(6) | 304 |
| 16 | STEM | 1 | 304/316 |
DIMENSIONS(mm)
| SIZE | D | L | H | W |
| 1/4" | 11 | 50 | 48 | 103 |
| 3/8" | 12 | 50 | 48 | 103 |
| 1/2" | 15 | 60 | 52 | 103 |
| 3/4" | 20 | 70 | 61 | 123 |
| 1" | 25 | 80 | 65 | 123 |
| 1-1/4" | 32 | 93 | 79 | 153 |
| 1-1/2" | 38 | 100 | 83 | 153 |
| 2" | 50 | 125 | 97 | 185 |
| 2 1/2" | 64 | 158 | 135 | 243 |
| 3" | 76 | 179 | 144 | 243 |
| 4" | 94 | 223 | 172 | 315 |
