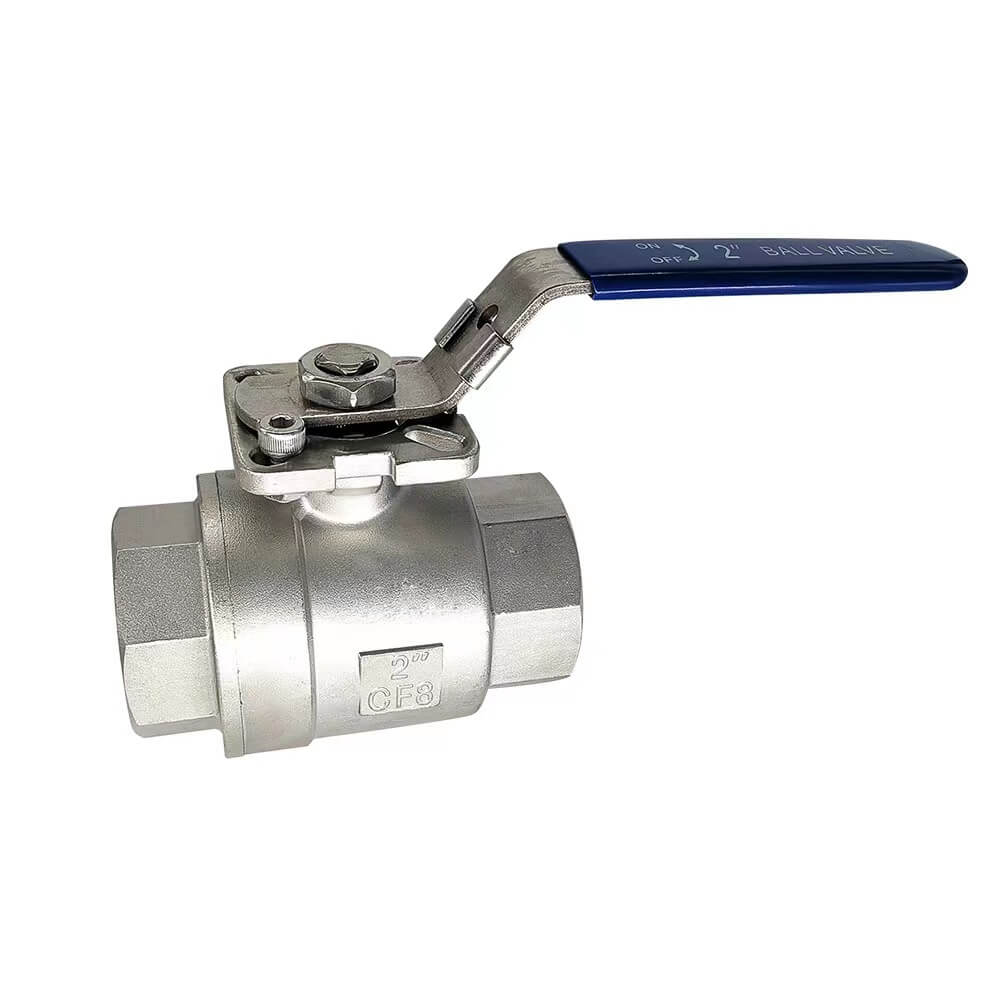

GY-QF203M
DESEINOR
FEATURES
1. Full port 1000PSI(PN63)
2. Investment Casting
3. Blow-out proof Stem
4. ISO5211 Mounting Pad
5. PED97/23/PE (CE0035) Approved
6. Anti-Static device(option)
7. Thread : ASME B1.20.1 BS21.DIN2999/259,
ISO228-1,JIS B 0203,ISO7/1
8.Inspection Testing:API598,EN12266
MATERIALS LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | HANDLE SLEEVE | PVC |
| 2 | HANDLE | 304 |
| 3 | GLAND NUT | 304 |
| 4 | STEM NUT | 304 |
| 5 | SPRING WASHER | 304 |
| 6 | STEM PACKING | PTFE |
| 7 | THRUST WASHER | PTFE |
| 8 | JOINT GASKET | PTFE |
| 9 | CAP | CF8/CF8M |
| 10 | BODY | CF8/CF8M |
| 11 | BALL SEAT | RPTFE |
| 12 | BALL | CF8/CF8M |
| 13 | AGAINST PINE PAD | 304 |
| 14 | STEM | 304/316 |
DIMENSIONS(mm)
| SIZE | D | L | H | D | E | W | ISO5211 |
| 1/4" | 11.6 | 49 | 36.5 | 9 | 9 | 12 | F04/03 |
| 3/8" | 12.5 | 49 | 36.5 | 9 | 9 | 12 | F04/03 |
| 1/2" | 15 | 58 | 37.8 | 9 | 9 | 12 | F04/03 |
| 3/4" | 20 | 65 | 42.5 | 9 | 9 | 12 | F04/03 |
| 1" | 25 | 77 | 45 | 11 | 11 | 14 | F05/04 |
| 1-1/4" | 32 | 90 | 51.5 | 11 | 11 | 14 | F05/04 |
| 1-1/2" | 38 | 98 | 59.5 | 14 | 14 | 18 | F07/05 |
| 2" | 50 | 121 | 68.5 | 14 | 14 | 18 | F07/05 |
| 2 1/2" | 64 | 156 | 98.5 | 17 | 16 | 22 | F10/07 |
| 3" | 76 | 186 | 108 | 17 | 16 | 22 | F10/07 |
