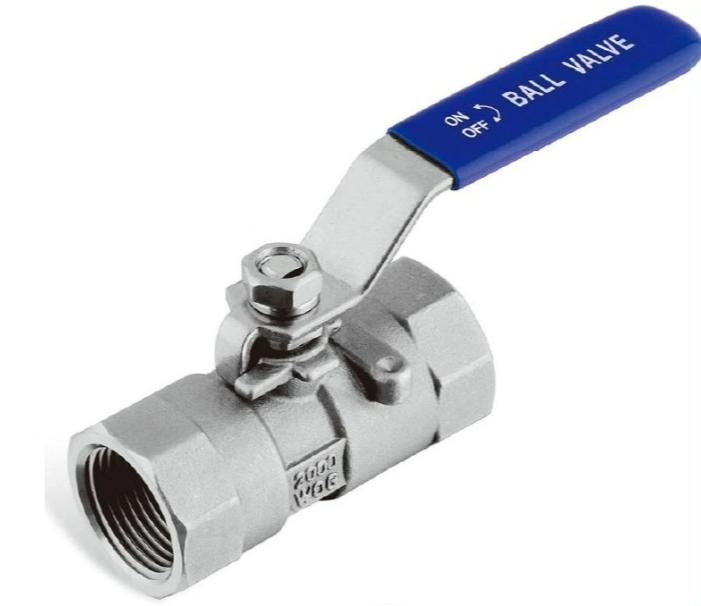

GY-QF103
DESEINOR
FEATURES
1. 2000PSI(PN150)
2. Reduce Port
3. Investment Casting
4. Blow-out proof Stem
5. Tapped & drilled mounting pad (option)
6. PED97/23/PE (CE0035) Approved
7. Casting Approved AD2000-W0
8. Thread : ASME B1.20.1 BS21.DIN2999/259,
ISO228-1,JIS B 0203,ISO7/1
9.Inspection Testing:API598,EN12266
MATERIALS LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | HANDLE SLEEVE | PVC |
| 2 | HANDLE | 304 |
| 3 | LOCKING | 304 |
| 4 | STEM NUT | 304 |
| 5 | SPRING WASHER | 304 |
| 6 | STEM | 304/316 |
| 7 | PACK RING | 304 |
| 8 | STEM PACKING | PTFE |
| 9 | THRUST WASHER | PTFE |
| 10 | BODY | CF8/CF8M |
| 11 | SEAT (A) | RPTFE |
| 12 | BALL | CF8/CF8M |
| 13 | SEAT (B) | RPTFE |
| 14 | INSERT | 304/316 |
DIMENSIONS(mm)
| SIZE | D | L | H | W | S |
| 1/4" | 9.2 | 59 | 44 | 91 | 22 |
| 3/8" | 9.2 | 59 | 44 | 91 | 22 |
| 1/2" | 9.2 | 67 | 44 | 91 | 26 |
| 3/4" | 12.5 | 71 | 47.5 | 111 | 32 |
| 1" | 15 | 84 | 60 | 111 | 40 |
| 1-1/4" | 20 | 94 | 65 | 126 | 50 |
| 1-1/2" | 25 | 100 | 71 | 126 | 55 |
| 2" | 32 | 114 | 76.5 | 154 | 70 |
