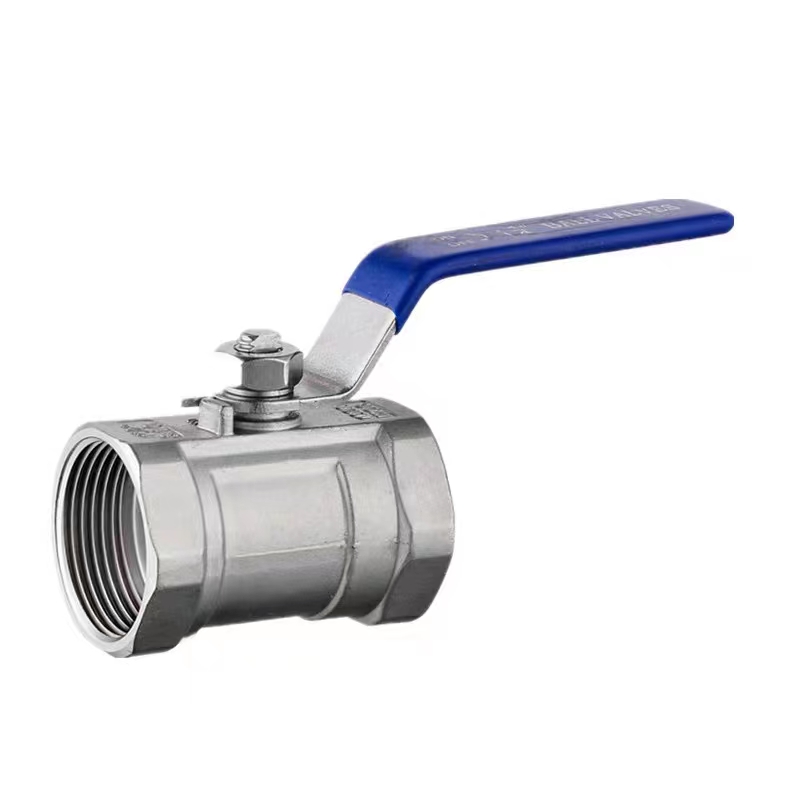

GY-QF101
DESEINOR
FEATURES
1. 1000PSI/PN63
2. Reduce Port
3. Investment Casting
4. Blow-out proof Stem
5. Casting Approved AD2000-W0
6. PED97/23/EC(CE0035)Approved
7. W.P:1/4”-2”1000psi 2 1/2”-4”800psi
8. Thread: ASME B1.20.1 BS21.DIN2999/259,
ISO228-1,JIS B 0203,ISO7/1
9. Inspection Testing:API598,EN12266
| ITEM | DESIGNATION | MATERIAL |
| 1 | HANDLE SLEEVE | PVC |
| 2 | HANDLE | 304 |
| 3 | LOCKING | 304 |
| 4 | STEM NUT | 304 |
| 5 | SPRING WASHER | 304 |
| 6 | STEM | 304/316 |
| 7 | PACKING RING | 304 |
| 8 | STEM PACKING | PTEF |
| 9 | THRUST WASHER | PTEF |
| 10 | CAP | CF8/CF8M |
| 11 | BODY | CF8/CF8M |
| 12 | BALL SEAT | RPTFE |
| 13 | BALL | 304/316 |
| 14 | BALL SEAT | PTFE |
| 15 | GLAND NUT | 304 |
| 16 | STEM PACKING | PTFE |
DIMENSIONS(mm)
| SIZE | D | L | H | W | S | |
| 1/4" | 5 | 39 | 31 | 65 | 17 | HEX |
| 3/8" | 6.8 | 44 | 36 | 85 | 21 | |
| 1/2" | 9.2 | 56.5 | 41 | 95 | 25 | |
| 3/4" | 12.5 | 59 | 41 | 95 | 25 | |
| 1" | 15 | 71 | 48 | 111 | 38 | |
| 1-1/4" | 20 | 78 | 54 | 111 | 49 | |
| 1-1/2" | 25 | 83 | 65 | 135 | 53 | |
| 2" | 32 | 100 | 72 | 135 | 65 | |
| 2-1/2" | 38 | 120 | 80 | 154 | 83 | OCT |
| 3" | 50 | 140 | 100 | 191 | 98 | |
| 4" | 64 | 170 | 129 | 246 | 127 |
